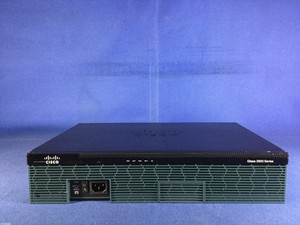

Cisco 2911 with 3 onboard GE, 4 EHWIC slots, 2 DSP slots, 1 ISM slot, 256MB CF default, 512MB DRAM default, IP Base. Cisco 2900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. Similar To The Other Routers In The Isr Portfolio, The Isr-ax Routers Consist Of Three Product Families: The Cisco 3900-ax, 2900-ax, And 1900-ax Series Routers. From The Cisco 1921-ax Through The Cisco 3945e-ax, The Portfolio Provides Increasing Performance And Module Slot Density, And Each Router Comes Equipped And Ready To Deploy. Cisco WAN:: Number Of EHWIC / HWIC In 2911? According to specifications fo Cisco ISR G2 2911, it has got 4 EHWIC slots. But in URL appears that Cisco2911 supports only 2 HWIC-2FE or only 2 EHWIC-1GE-SFP-CU. View 1 Replies View Related Cisco WAN:: Can Populate All 4 EHWIC Slots In 2911 Router With VWIC3-4MFT-T1/E1 Cards Mar 12, 2013.

High Speed Cisco Gigabit Router CISCO2951-SEC/K9 2 Service Module Slots

Cisco Unified Communications system of voice, video and IP communications products and applications enables organizations to communicate more effectively-enabling them to streamline business processes, reach the right resource the first time and impact the top and bottom line. The Cisco Unified Communications portfolio is an integral part of the Cisco Business Communications Solution-an integrated solution for organizations of all sizes which also includes network infrastructure, security, and network management products, wireless connectivity, and a life-cycle services approach, along with flexible deployment and outsourced management options, end-user and partner financing packages, and third party communications applications.

Wiring Procedure for DC Input on Cisco 2911, 2921, and 2951 Routers

To connect a router to a DC power source, perform the following steps:

Step 1 Remove power from the DC circuit. To ensure that power is removed from the DC circuit, locate the circuit breaker for the DC circuit, switch the circuit breaker to the OFF position.

Warning Follow proper Lockout /Tagout Procedures as defined by your company in accordance with local and national laws (e.g. Title 29 CFR Part 1910.147).

Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003

Warning Use copper conductors only. Statement 1025

Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Tip Tip Secure all power cabling when installing this unit to avoid disturbing field-wiring connections.

Warning When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor. Statement 1002

Step 2 Strip the wires to the appropriate length for the terminals. The strip length is 5/64 to 1/8 inch (2 to 4 mm) for Amp/Tyco No. 32957 terminals.

Step 3 Crimp the terminals to the power input and safety ground wires.

Step 4 Remove the plastic covers from the terminal block. Save the covers for reinstallation after you finish wiring.

Step 5 Connect the wires to the terminal block, starting with the safety ground wire. Connect each wire to the appropriate terminal as shown in Figure 1. Tighten the terminal screws to 8.0 ± 0.5 in-lb (0.9 ± 0.05 N-m).

Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028

Warning The illustration shows the DC power supply terminal block. Wire the DC power supply as illustrated. The proper wiring sequence is ground to ground, positive to positive, and negative to negative. The ground wire should always be connected first and disconnected last. Statement 239

Warning An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that no exposed portion of the DC-input power source wire extends from the terminal block plug. Statement 122

Caution Dual sources with opposite-polarity grounding damage equipment.

Caution Caution Do not overtorque the terminal block contact screws. Recommended torque is 5.0 ± 0.5 in-lb (0.56 ± 0.06 N-m) for 2911 series routers, and 9 ± 1.0 in-lb (1.02 ± 0.11 N-m)

Figure 3-20 DC Power Connections for Cisco 2911, 2921, and 2951 Routers
